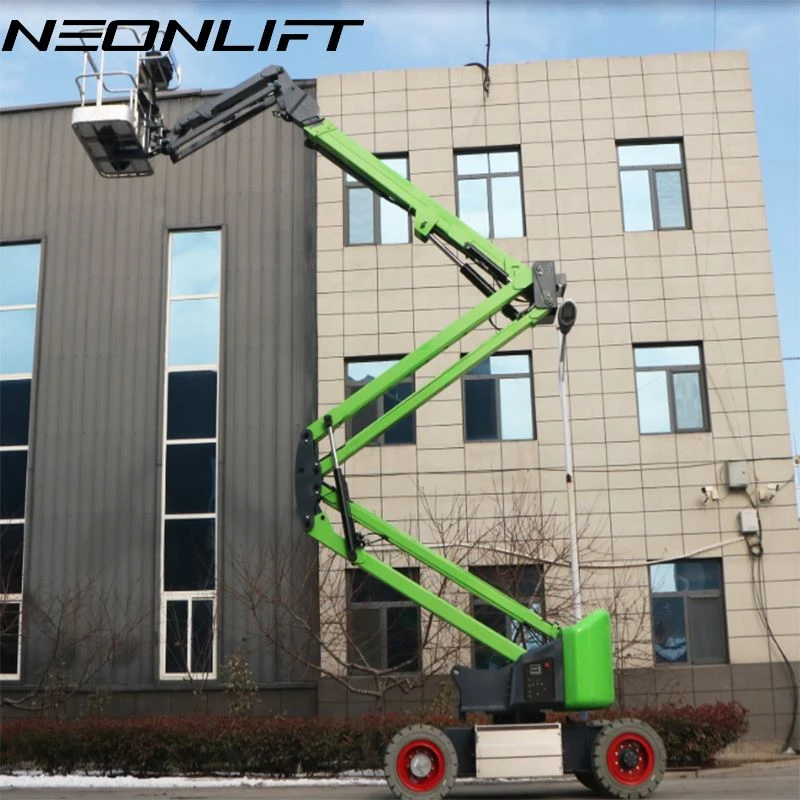

Self Drive Aerial Access Platform

Articulated boom platform range consists of six distinct models: DX09, DX11, DX14, DX16, DX18 and DX20, covering a broad spectrum of elevated access assignments. The maximum working height stretches from 11.3 metres up to 22.5 metres, with corresponding platform heights ranging from 9.3m to 20.5m. Impressive up-and-over reach varies between 4.2m and 9.4m, while horizontal outreach extends 5.8m to 11.8m, enabling operators to access elevated positions blocked by structural barriers.

Three standard basket dimensions are supplied: 1.4×0.7m for DX09 & DX11, 1.4×0.76m for DX14 & DX16, and a larger 1.8×0.76m platform fitted on DX18 and DX20. When folded for transit, machine length spans 5.2m–8.99m, overall width ranges 1.27m–2.49m. Stowed height stands at 2.0m for DX09 to DX16, rising to 2.38m for DX18 and DX20. Wheelbase options include 1.75m, 1.95m, 2.0m and 2.5m, and ground clearance of 0.14m, 0.25m and 0.30m helps navigate uneven ground conditions.

Load specifications differ across the lineup. DX09 and DX11 support a maximum payload of 200kg for two technicians. Mid-range DX14 and DX16 carry up to 230kg for two occupants. The larger DX18 and DX20 support dual load ratings of 230kg or 350kg, suitable for two or three operators plus hand tools. Every machine is equipped with ±80° platform rotation and ±70° jib swing for precise positioning. DX09–DX16 adopt 355° turntable rotation, whereas DX18 and DX20 feature continuous 360° unrestricted rotation without dead zones. Travel speed in stowed configuration varies from 4.5km/h to 5.1km/h. Gradeability reaches 30%–45% to safely climb slopes. An integrated tilt protection system activates safety cut-off at 3° inclination to safeguard personnel. Outside turning radius falls between 3.2m and 5.0m for agile movement on congested sites. DX09–DX16 utilise 2×2 wheel drive, while heavy-duty DX18 and DX20 adopt 4×2 drive and steering. Overall machine weight ranges from 5200kg to 10000kg depending on model configuration.

Standard power packages utilise 48V 320Ah lead-acid batteries for DX09–DX16, upgraded to 48V 420Ah packs on DX18 and DX20. Small and medium-sized units run on a 4kW hydraulic pump motor; DX18 and DX20 are fitted with a 12kW pump motor. All versions share a 3.3kW drive motor and 24V low-voltage control circuit to deliver stable and reliable operation. Two practical optional upgrades are available to meet custom project demands: maintenance-free lithium iron phosphate batteries for extended service cycles, and solid non-marking tyres that prevent scuffs on epoxy, marble and tiled indoor surfaces, ideal for shopping centres, offices and hotel maintenance projects.

Application

• This battery-powered articulating man lift serves construction firms, property maintenance teams, warehouse operators, airport service crews, stadium contractors and industrial plant renovation projects worldwide. In contrast to diesel-driven boom lifts, this all-electric unit generates zero exhaust emissions and operates at low noise levels, complying with indoor environmental regulations while cutting long-term fuel and servicing expenditure. The hinged boom achieves compact folded dimensions for simple truck transportation, and the up-and-over geometry enables operators to bypass walls and beams, solving access challenges on tight, complicated building sites.
• Typical applications: exterior facade cleaning for multi-storey buildings, industrial pipe installation, lighting and signage mounting inside shopping malls, maintenance of high warehouse racking, minor bridge repair, airport lamp inspection, exhibition setup, municipal infrastructure servicing, tree pruning and photovoltaic panel fitting.

Product Advantages

• Zero-emission full electric power source, free of diesel fumes, meets EU environmental standards, usable for both indoor and outdoor assignments
• Excellent overreach capability. The articulated boom navigates beams and partitions to reach elevated working positions inaccessible to straight telescopic platforms
• Multi-angle rotation system combining basket, jib and turntable movement, minimising the need to reposition the whole machine
• Optimised ground clearance and climbing ability, suitable for concrete, gravel, ramps and irregular construction terrain
• Flexible upgrade choices: lithium battery packs and non-marking solid tyres for projects with delicate floor surfaces
• Six model options covering working heights from 11.3m to 22.5m, catering to low, medium and high-level aerial access requirements
• Comprehensive safety suite: tilt interlock, overload detection, emergency stop, protective guardrails and load alarm on the working platform
• Economical running costs. Electric power consumption is far lower than diesel equipment, and simplified mechanical layout reduces routine maintenance work
