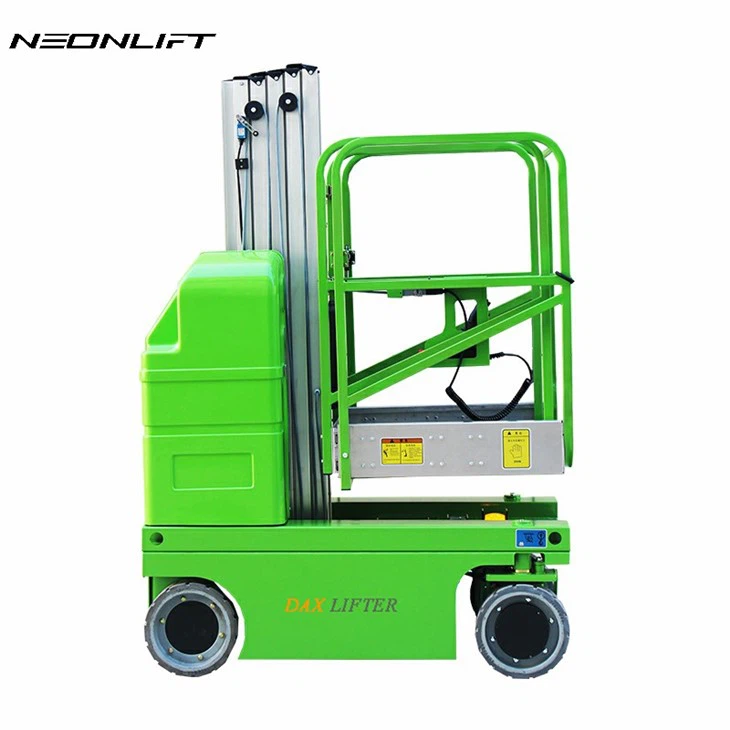

Vertical Hydraulic Aluminum Alloy Lift

Description

Vertical Hydraulic Aluminum Alloy Lift is a versatile aerial work platform designed to provide users with a convenient and safe solution for working at heights. Made from high-strength aluminum alloy, this equipment offers several advantages, including an attractive appearance, compact size, lightweight design, smooth lifting operation, and high safety and reliability. It is a self-propelled unit, allowing users to control its movement directly from the platform, making it far more convenient than manual push models.

The available platform heights are 6 meters and 7.5 meters, with load capacities of 150 kg and 125 kg, respectively. For greater heights, double mast lift is an option, though it's important to note that as height increases, load capacity decreases. For example, a double mast lift can reach a platform height of 7.5 meters with a load capacity of 200 kg. At 9 meters, the load capacity decreases to 150 kg. The platform size is 0.78m × 0.70m, which is suitable for one person to carry a small amount of tools for aerial work. Additionally, the compact size allows the lift to pass through narrow areas and operate indoors.

Self-Propelled mobile mast vertical lift platform is constructed using high-strength manganese steel alloy square tubing, making it easy for a single person to work safely at height. The entire unit is built with high-strength aluminum profiles. Depending on the environment and height requirements, it can feature single, double, triple, four, or six-mast configurations, meeting the needs of most customers requiring single-user aerial work. The lift is also equipped with a high-strength guardrail, significantly enhancing safety during elevated operations.

Aluminum alloy multi-mast mobile hydraulic work platform is widely used in a variety of settings, including factories, hotels, buildings, shopping malls, stations, docks, machine shops, and gyms. Its compact structure allows it to easily navigate tight spaces, such as elevators, and it is energy-efficient, environmentally friendly, and free of pollution. The high-strength PU wheels ensure that the ground is not damaged during operation. The column design allows the overall height of the lift to be reduced for easier transportation, improving its portability for movement, loading, and unloading.

Technical Data
