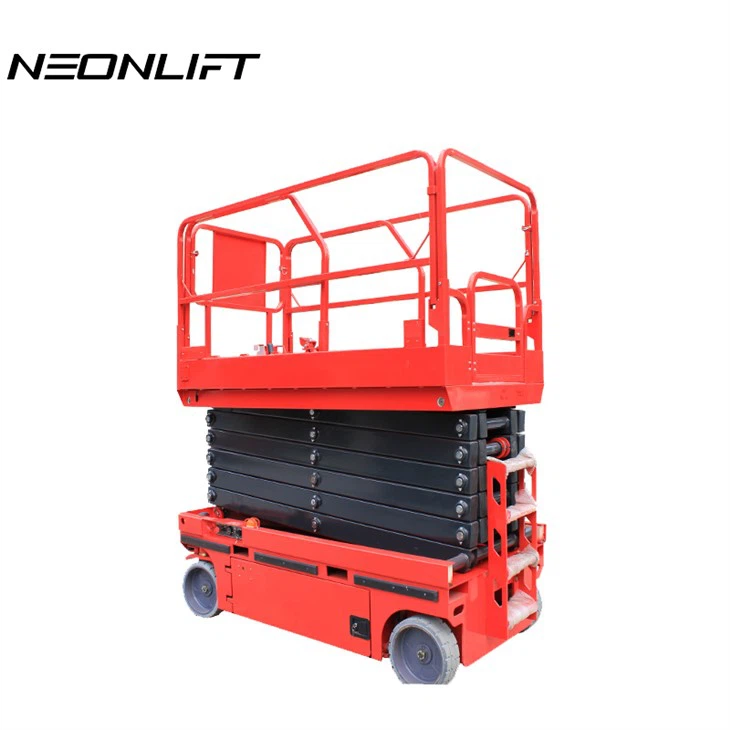

Scissor Lift Platform Extension

Description

Scissor Lift Platform Extension is a highly versatile and efficient piece of aerial work equipment, widely used for tasks that require operations at height. The mobile scissor lift operates using a hydraulic system as its core power source, with lifting achieved through the pressure transmission of hydraulic oil. The system consists of a hydraulic pump, hydraulic cylinders, and control valves, which drive the lifting mechanism by compressing and releasing fluid to enable the vertical movement of the platform.

Hydraulic scissor lift has a maximum load capacity of 550 kg and can reach a maximum lifting height of 14 meters. However, it's important to note that the load-bearing capacity decreases as the height increases. For example, at a table height of 6 meters, the lift can support up to 500 kg, but at 14 meters, the capacity decreases to 230 kg. This design ensures stability and safety under varying working conditions.

In addition to its lifting capabilities, the self-propelled scissor lift is equipped with an automatic driving function, allowing it to perform multiple operations such as raising, lowering, moving forward, backward, and turning while elevated. Its travel speed is 3.4 km/h when the platform is lowered and decreases to 0.7 m/h when the platform is raised, enabling the lift to adapt flexibly to different working conditions.

Scissor lift operates by transmitting hydraulic pressure through the hydraulic cylinder, converting force into vertical movement to raise and lower loads. The hydraulic system provides substantial lifting power, allowing the equipment to carry heavy objects smoothly and safely without excessive shaking or vibration during the lift.

Moreover, mini scissor lifts are known for their compact design and ease of operation. The hydraulic scissor lift platform uses high-quality steel scissor arms to ensure high stability during lifting and lowering operations. The equipment features self-driving and steering capabilities, eliminating the need for external power sources or manual towing. It can move at varying speeds, depending on the work environment, allowing for quick or slow movement as needed.

When operating the aerial scissor lift, it is essential for operators to strictly follow safety operation guidelines to ensure both safety and smooth functionality. Before starting any work at height, all personnel should receive proper training to understand the platform's operation and safety standards. Additionally, the equipment should be inspected for integrity and stability, ensuring that the lift functions properly, is well-lubricated, and is maintained regularly.

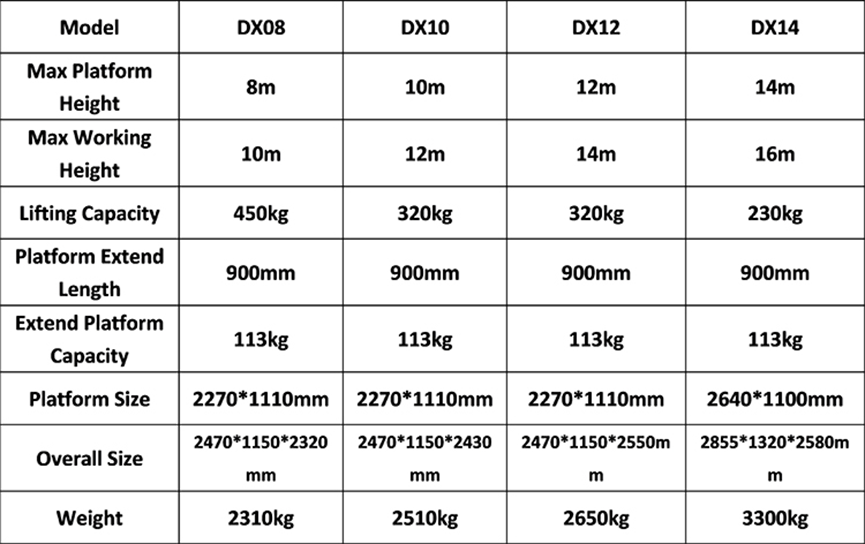

Technical Data
