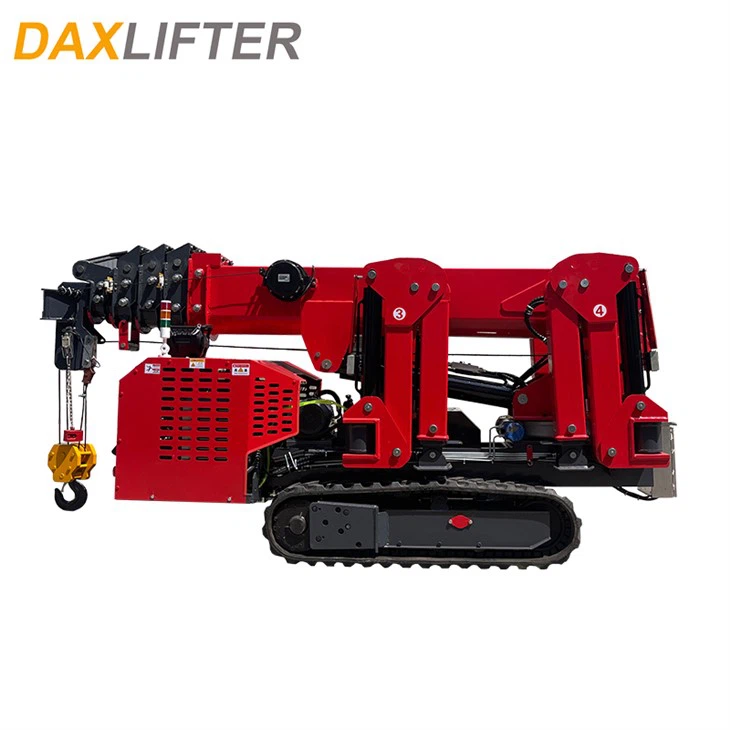

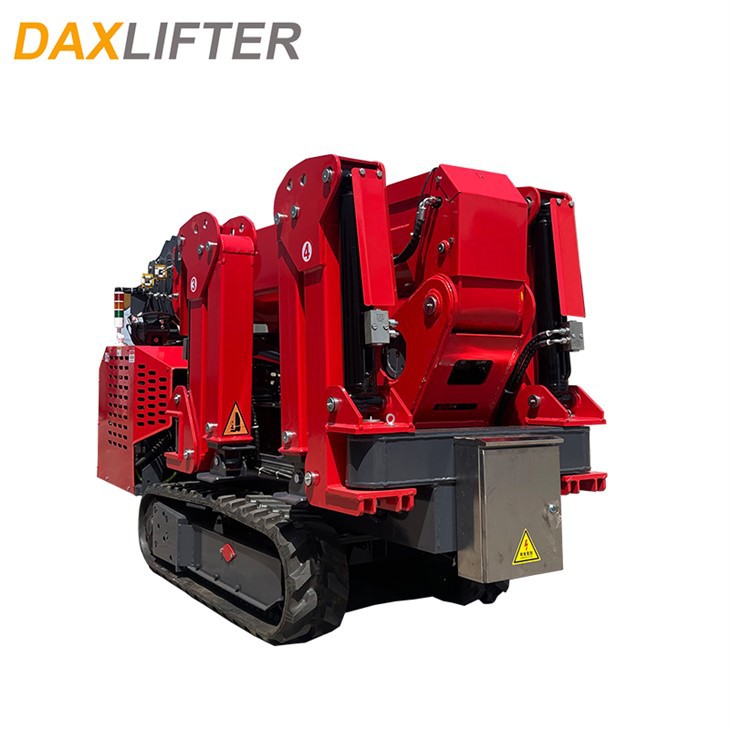

Compact Mobile Spider Crane

Compact mobile spider crane is a compact, highly maneuverable heavy-duty lifting machine, purpose-built for narrow-space and low-altitude lifting operations that large cranes cannot access, making it the optimal choice for construction, installation and maintenance projects.

Send Inquiry

Compact mobile spider crane is a compact mobile spider crane with a maximum rated load of 3 tonnes and a maximum working height of 11m.Its load capacity changes dynamically as the boom extends, with a rated load of 400kg at a 10m working height, covering most low-altitude lifting needs.Highly adaptable, it can work with electric vacuum suction cups for glass installation and construction material handling.It also supports various interchangeable attachments; with a man basket installed, it enables safe manned aerial work for diverse construction scenarios.

Technical Data

Model		3t (6-section boom)
Max. Working Radius	10.1m × 0.4t
Max. Ground Lifting Height	11m
Max. Underground Stroke	10m×1t (4 ropes) / 20m×1t (2 ropes) / 40m×0.74t (1 rope)
Hoisting Device	Hook Lifting Speed	0-8m/min (4 ropes)
Hoisting Device	Wire Rope Specification	Φ8mm × 45m
Telescopic Device	Boom Form	6-section boom
Boom Angle / Time	0-80°/13sec
Slewing Angle / Time	0-360°(continuous)/60sec
Outriggers	Outriggers Movement	Hydraulic extension + auto support
Outriggers	Maxmium Extension Range	4800×3610×4970mm (front/length/rear)
Device	Travel Mode	Hydraulic motor travel
	Travel Speed	low speed: 0-2.5km/h
	Climbing Capacity	Climbing Capacity
Motor Voltage	380V (customizable per customer requirements)
Engine	Brand	Changchai 380
	Power	Power
	Starting Mode	Electric start
	Starting Performance	Starting Performance
	Fuel	Diesel / 8L
	Emission Standard	National Standard II
Standard Configuration	Diesel engine + motor (dual power)
Overall Dimensions	L 3.1m × W 0.95m × H 1.76m
Overall Weight	2.7t

Core Lifting Performance & Technical Specifications

Dynamic Load Capacity & Working Height

This mobile spider crane delivers a maximum lifting capacity of 3 tons, with a maximum working height of up to 11m. Its load capacity changes dynamically with boom extension: it maintains a 400kg rated load at 10m working height, which is fully suitable for more than 80% of mainstream low-altitude lifting tasks on job sites.

Multi-Scene Adaptability With Interchangeable Attachments

Versatile Tools for Diverse Operations

Widely compatible with multiple auxiliary equipment, it works perfectly with an electric vacuum lifter for glass curtain wall installation, and excels at cargo handling on construction sites. It also supports interchangeable attachments such as a man basket, to support safe manned high-altitude work for maintenance and fit-out projects.
