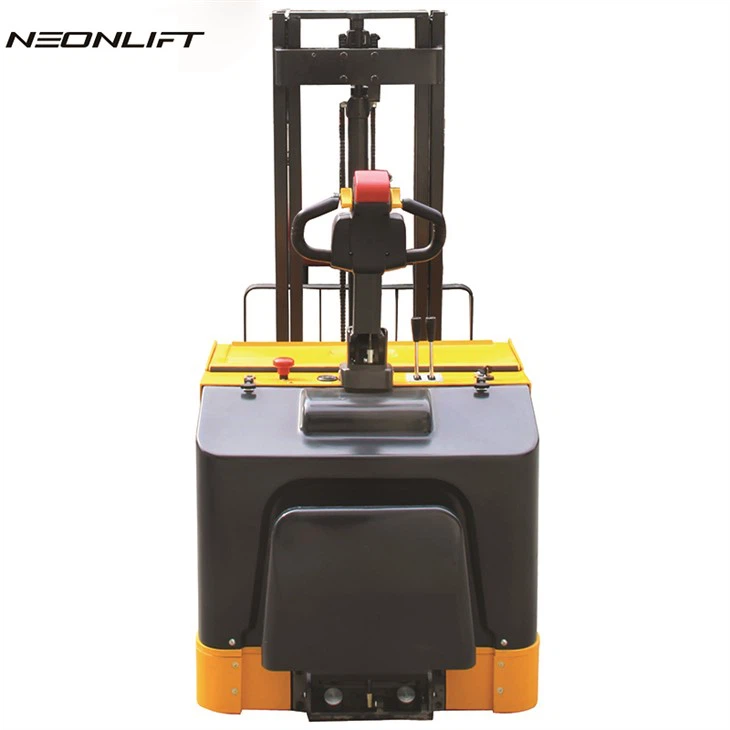

Stand Drive Electric Counterbalanced Stacker

Stand Drive Electric Counterbalanced Stacker

Description Stand Drive Electric Counterbalanced Stacker adopts a high-strength body design and a "C"-shaped steel mast made by a special pressing process. It is very strong, enhances durability, increases the service life of the product, and improves cost performance. The stacker...
Send Inquiry

Description

Stand Drive Electric Counterbalanced Stacker adopts a high-strength body design and a "C"-shaped steel mast made by a special pressing process. It is very strong, enhances durability, increases the service life of the product, and improves cost performance. The stacker crane uses an electric steering system, which makes the steering operation more convenient and easier. You can quickly learn how to operate it and put it into use. In terms of options, you can choose foldable pedals according to your needs. The pedals have a cushioning function and can eliminate the impact of the operator on the road during driving. In addition, it also has a very user-friendly operating handle, which is ergonomic, and has a reverse travel button, making the operation more convenient.





Technical Data

Model



CPDA

Config-code



SF13

SF15

SF20

Drive Unit



Electric

Operation Type



Pedestrian/Standing

Load capacity(Q)

Kg

1300

1500

2000

Load center(C)

mm

500

500

500

Overall Length (L)

mm

2640

2640

2640

Overall Width (b)

mm

860

860

1100

Overall Height (H2)

mm

1860/2110/2260

Lift height (H)

mm

2500/3000/3300

Max working height(H1)

mm

3325/3825/4125

Free lift height(H3)

mm

140

Fork dimension (L1*b2*m)

mm

1000x100x35

1000x100x35

1000x100x40

MAX Fork Width (b1)

mm

230~780

Minimum ground clearance(m1)

mm

80

Min. aisle widith for stacking(pallet1200x800mm)Ast



2955

Mast obliquity

°

1/7

Turning radius (Wa)

mm

1520

Drive Motor Power

KW

1.6AC

Lift Motor Power

KW

2.0

Battery

Ah/V

240/24

Weight w/o battery

Kg

1745/1790/1820

1795/1840/1870

1990/2035/2065

Battery weight

kg

235





product-865-509



Application

Kasun from the Bahamas needed a product for workers to use in warehouses to move pallets from shelves. He found us from our website and informed us of his specific needs. He needed a load capacity of 1500kg and a shelf with a maximum height of 2 meters. After figuring out Kasun's needs, we recommended our fully electric stacker to him. He was also recommended to use foldable pedals, which would make it more convenient to drive the device around the warehouse. After consideration, he accepted our suggestion and ordered two forklifts. After receiving the goods, he was very happy because the efficiency of the workers has been greatly improved. And he is willing to recommend our products to his friends.
