Description

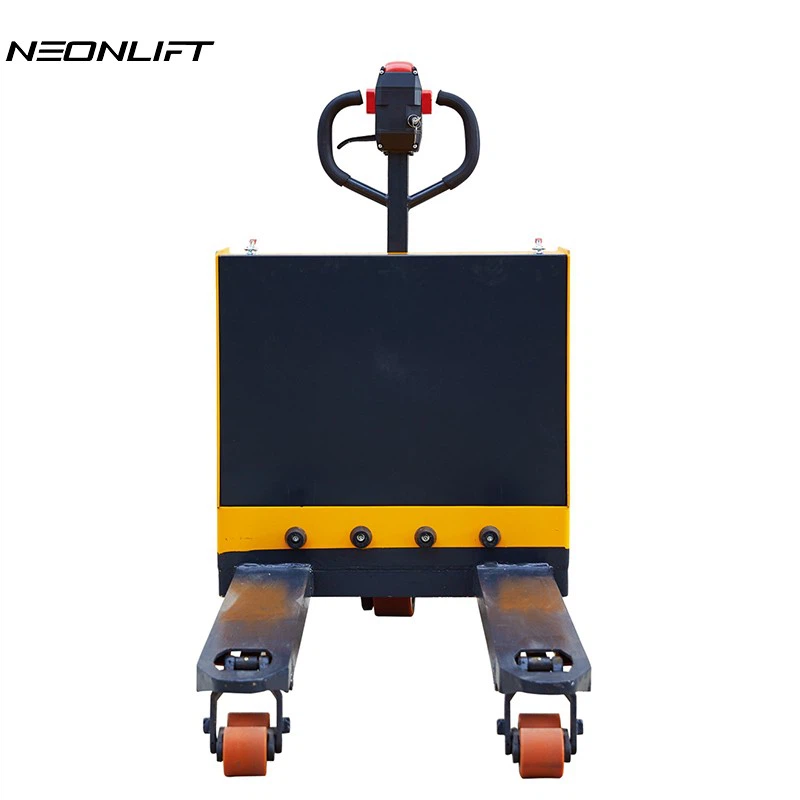

As a powerful assistant in warehousing and logistics, the Lift Pallet Truck offers exceptional flexibility and efficiency with its unique combination of manual lifting and electric travel. With a maximum load capacity of up to 3000 kg, this pallet truck can easily handle various heavy goods, from raw materials to finished products, completing tasks with ease. Its large-capacity lead-acid battery ensures long-term endurance, providing over 12 hours of continuous operation with stable power output, which guarantees both stability and safety during use.

The high-strength body design of the semi-electric pallet truck is specifically tailored for high-intensity workplaces. Its sturdy and durable structure can withstand collisions and wear from daily use, significantly extending the equipment's service life. Additionally, this design enhances the vehicle's stability under high loads, allowing staff to work with greater confidence.

Notably, our pallet truck features a stepless speed regulation system that enables the operator to easily adjust the walking speed based on actual working conditions. Whether navigating quickly through warehouse aisles or precisely controlling handling positions, this system makes it simple to achieve desired speeds. The intuitive design of the operating interface allows even first-time users to quickly adapt and enjoy the smooth start-up and straightforward operation. As a result, semi-electric pallet trucks have become indispensable material handling equipment in many warehouses and workshops, providing strong support for production and operational efficiency.

Technical Data

Model		CBD
Config-code		BF10	BF15	BF20	BF25	BF30
Drive Unit		Semi-electric
Operation type		Pedestrian
Capacity (Q)	Kg	1000	1500	2000	2500	3000
Overall Length (L)	mm	1730	1730	1730	1860	1860
Overall Width (b)	mm	600	600	720	720	720
Overall Height (H2)	mm	1240
Mi. Fork height (h1)	mm	85(140)
Max. Fork height (h2)	mm	205(260)
*Fork dimension (L1b2m)*	mm	120016045
MAX Fork Width (b1)	mm	530/680
Turning radius (Wa)	mm	1560	1560	1560	1690	1690
Drive Motor Power	KW	0.55	0.75	0.75	0.75	0.75
Battery	Ah/V	60Ah/24V	120/24	150-210/24
Weight w/o battery	kg	223	273	285	300	300

101

As a powerful assistant in warehousing and logistics, the Lift Pallet Truck offers exceptional flexibility and efficiency with its unique combination of manual lifting and electric travel. With a maximum load capacity of up to 3000 kg, this pallet truck can easily handle various heavy goods, from raw materials to finished products, completing tasks with ease. Its large-capacity lead-acid battery ensures long-term endurance, providing over 12 hours of continuous operation with stable power output, which guarantees both stability and safety during use.

The high-strength body design of the semi-electric pallet truck is specifically tailored for high-intensity workplaces. Its sturdy and durable structure can withstand collisions and wear from daily use, significantly extending the equipment's service life. Additionally, this design enhances the vehicle's stability under high loads, allowing staff to work with greater confidence.

Notably, our pallet truck features a stepless speed regulation system that enables the operator to easily adjust the walking speed based on actual working conditions. Whether navigating quickly through warehouse aisles or precisely controlling handling positions, this system makes it simple to achieve desired speeds. The intuitive design of the operating interface allows even first-time users to quickly adapt and enjoy the smooth start-up and straightforward operation. As a result, semi-electric pallet trucks have become indispensable material handling equipment in many warehouses and workshops, providing strong support for production and operational efficiency.
