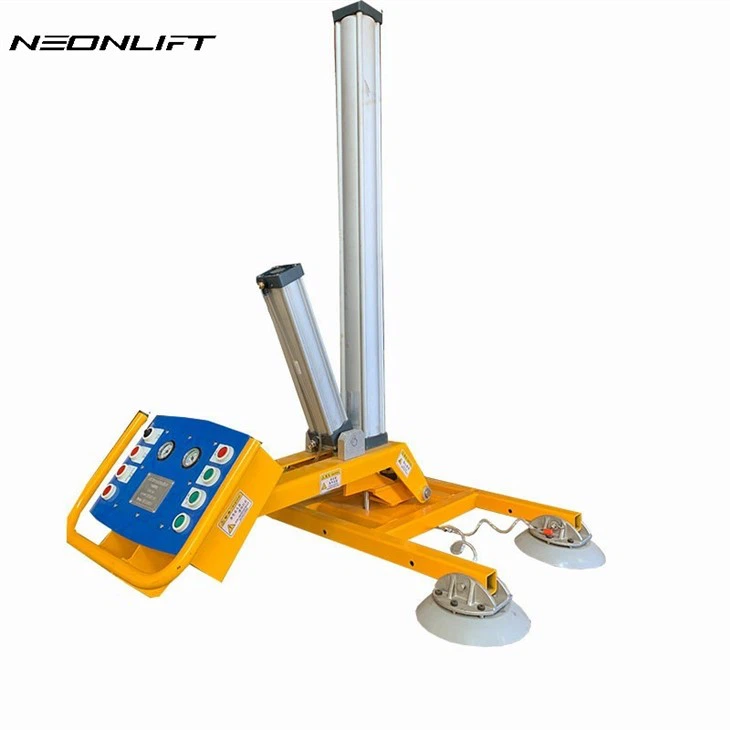

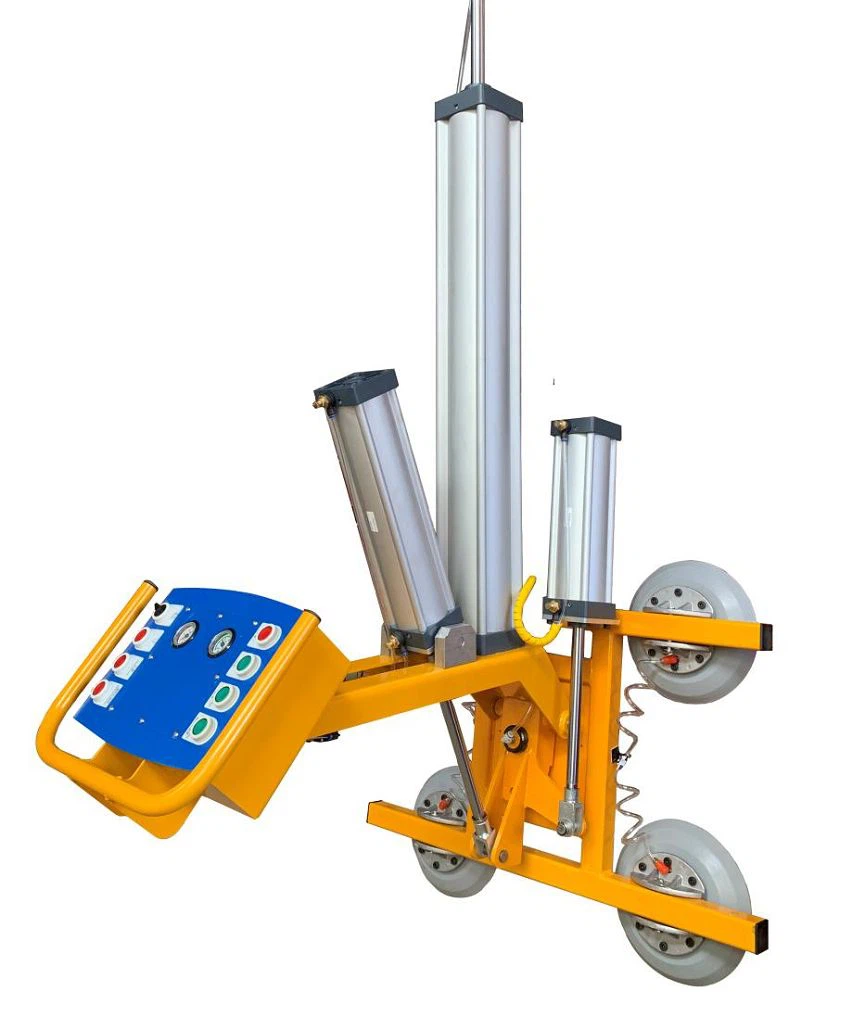

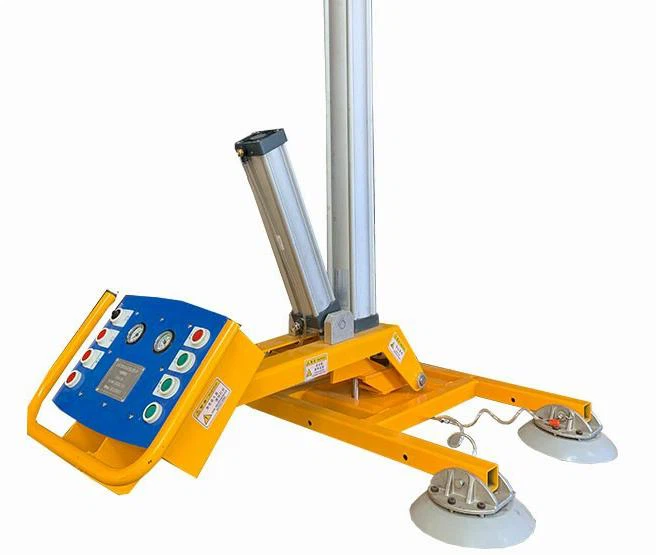

Stone Vacuum Lifter
Description

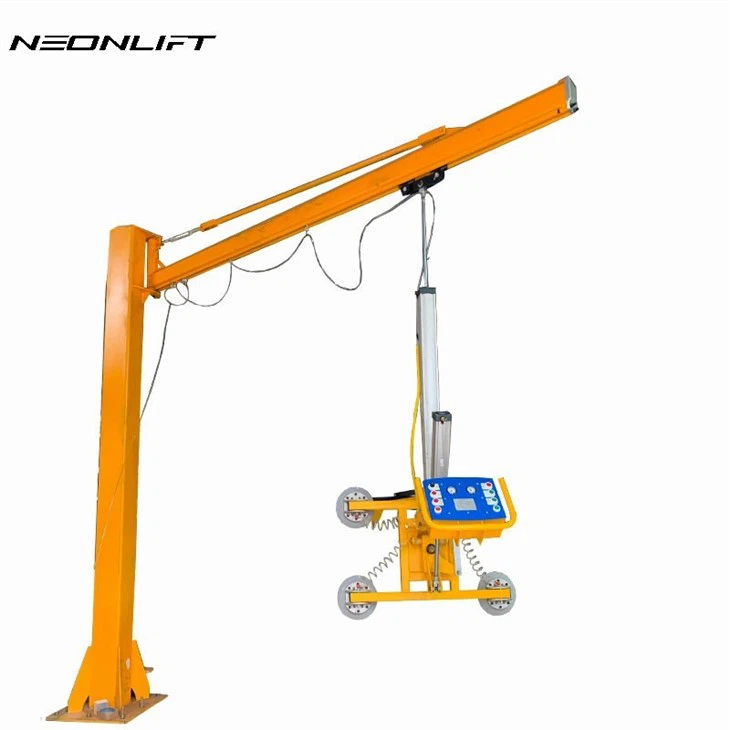

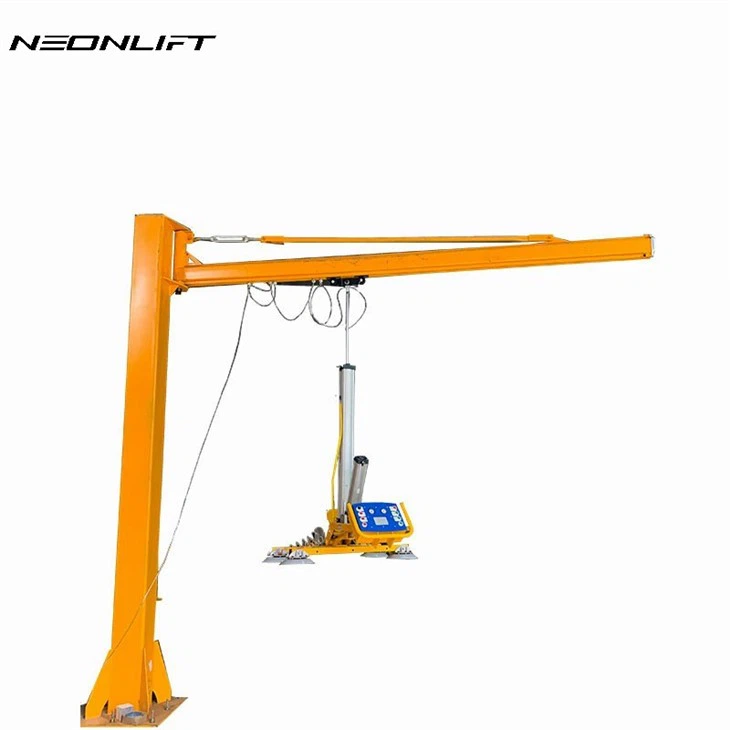

Stone vacuum lifter is widely used in handling insulating glass, tempered glass, glass curtain wall, glass deep processing, solar photovoltaic glass and other industries. It saves time, labor and cost, is easy to use, and has no pollution; it is small and light, and can be operated by one person without damage to workpieces, no external power supply is required; it has the characteristics of ergonomic design, sound and light alarm system, energy storage device, high safety, long service life, etc. Cooperate with crane or jib crane to form a complete lifting and handling solution.
Technical Data
Model | Capacity | Lifting Cylinder | Rotary Cylinder | Tilting Cylinder | Cup size | Cup QTY | Max Size undertake |
NLGL-QD-300 | 300 | SU100*1000 | SU80*400 | SU80*300 | 250mm | 4 | 1150*780mm |
NLGL-QD-400 | 400 | SU125*1000 | SU100*400 | SU100*300 | 300mm | 4 | 1200*820mm |
NLGL-QD-500 | 500 | SU160*1000 | SU100*300 | SU125*300 | 300mm | 6 | 1200*820mm |
Advantages
| Powerful pneumatic suction cup system keeps the vacuum state continuously and is safer. |
|
Vacuum lifter structure is simple, the operation is convenient, and the frequency of maintenance and inspection can be reduced. |
|
Wooden box package can protect the suction cups during shipping. |
|
Suitable custom production can be provided according to the size and weight of the customer's material. |
|

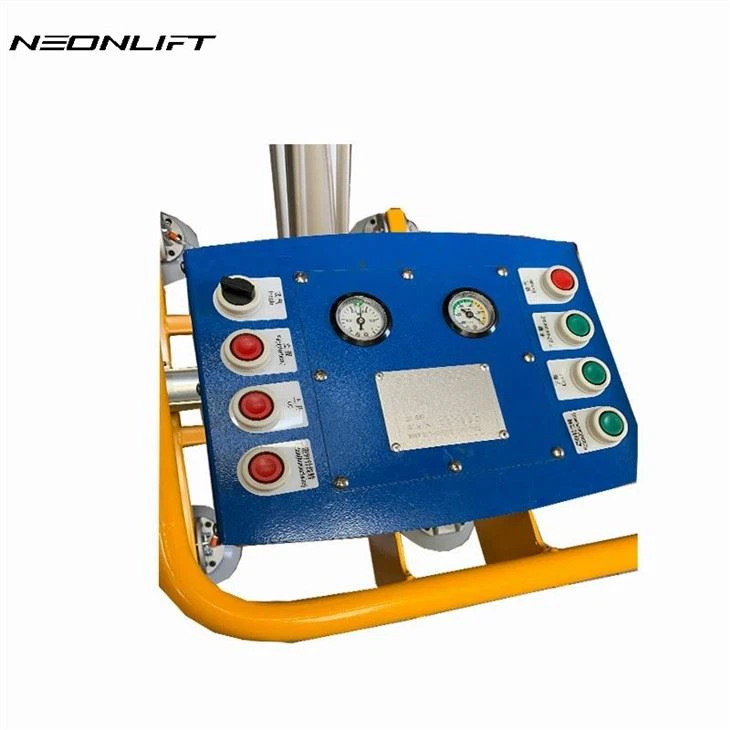

Control panel is installed on the bracket, which is more convenient to operate. |
|
Why Choose Us
NEONLIFT® NLGL-QD® series pneumatic vacuum lifter is a piece of equipment that can be used to handle or install materials. By changing the glass and sponge system, it is possible to meet the needs of different materials. With high-quality products and excellent pre-sales and after-sales services, we have been exported to different countries, including UK, Italy, Poland, Sri Lanka, India, Nigeria, etc., we can be your good choice!
Application

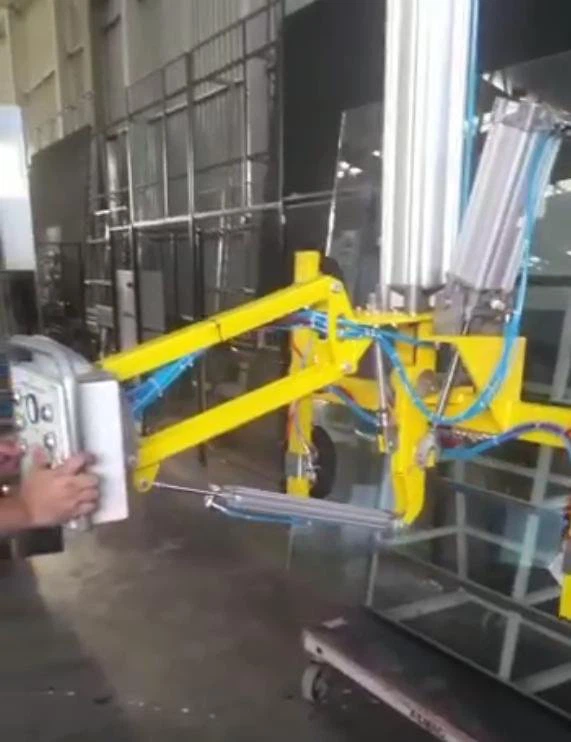

"Replace the original complex machinery and find a simpler way of working", this is the request of our Nigerian customer Damian. Damian has his own plywood factory, which used relatively large handling equipment before, but the problem is that the equipment is too large and not flexible enough to use, so he wanted to find a flexible and compact one. In our recommendation discussion, Damian finally purchased 5 sets small vacuum lifters to improve the efficiency of the factory.
More Photos Review
FAQ
Q: Are the racks on which the suction cups installed in the front automatically rotated or manually?
A: Standard configuration is manual rotation. In order to better help customers work, it can be customized to automatically rotate.
Q: Is the number of equipped suction cups the same?
A: No, according to the size and weight of your glass, we will provide different numbers of suction cups and different arrangements.
Q: Can NLGL-QD® series vacuum lifter only lift glass?

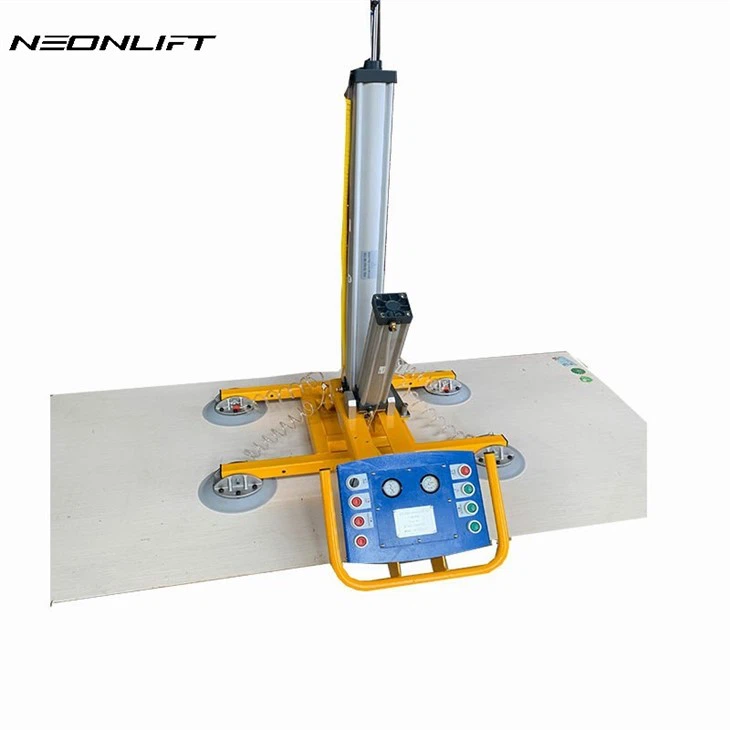

A: No, we will provide suction cups with rubber system or sponge system according to the material and surface condition. Wood, glass, steel, plywood, etc., all can be used.
Q: Do your products have relevant certificates?
A: All our products have obtained CE certificate and are made according to European standards, please don't worry.
