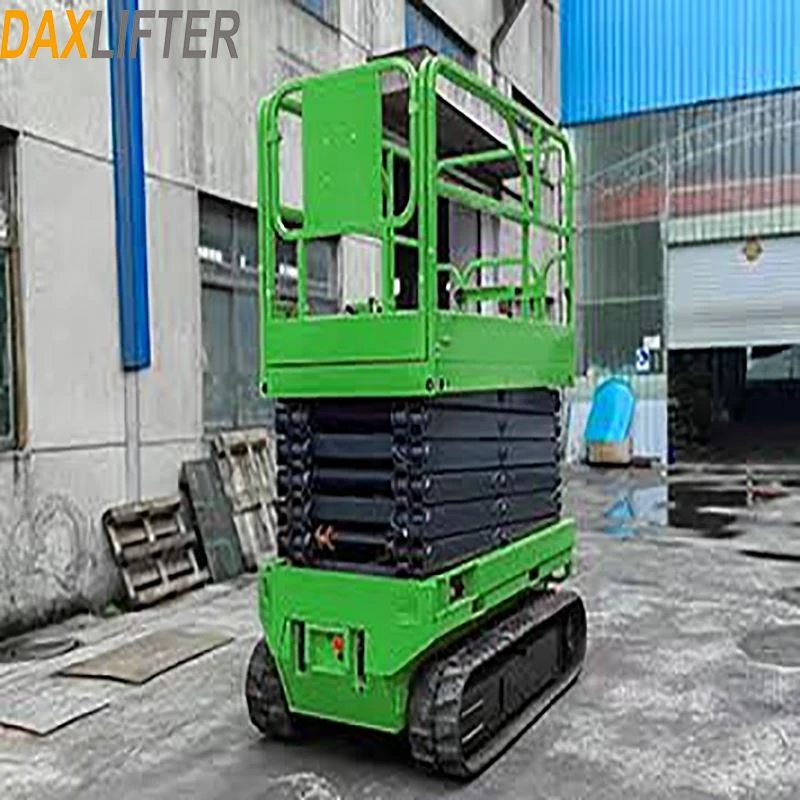

Battery Electric Tracked Scissor Lift
DAXLIFTER DXLD Series Tracked Self-propelled Scissor Lift
DAXLIFTER DXLD series tracked self-propelled scissor lift includes DXLD6, DXLD8, DXLD10, DXLD12 and DXLD14 models. The max platform height ranges from 6m to 14m while max working height reaches 8m to 16m, rated capacity 320kg, platform dimension 2400*1170mm, extend platform size 900mm with 115kg extend platform capacity. Overall machine dimension without guard rail varies from 3000*1750*1700mm up to 3000*1750*2250mm, machine weight 2400kg~3700kg. It adopts rubber track material, drive speed 0.8km/min, lifting speed 0.25m/s, powered by 6v*8*200ah battery with 6-7 hours full charging time. This all-terrain crawler aerial work platform is built for uneven ground, muddy construction sites, landscaping maintenance, outdoor building renovation and off-road aerial jobs across Europe, North America, Australia and Southeast Asia.
Our rough terrain scissor lift is battery electric powered, no diesel emission, low noise for indoor and outdoor mixed working scenarios. The rubber crawler track distributes ground pressure evenly so the machine can pass over gravel, grass, slope and unpaved ground without sinking. The extendable platform gives extra working space for operators and hand tools, the safety guard rail ensures operator protection during elevation. All DXLD tracked scissor lifts adopt heavy-duty scissor steel structure and stable hydraulic lifting system, with overload protection and tilt alarm safety systems to meet global aerial work safety standards.
DAXLIFTER factory direct supply this electric crawler scissor man lift, CE compliant. Multiple working height options from 8m working height up to 16m working height to match different site aerial maintenance, installation, painting, cleaning and inspection work. The self-driving crawler chassis allows operators to move the lift on site directly from the platform control box, no extra towing vehicle required. The long-cycle 6v8*200ah battery supports all-day site operation, 6~7 hours charging cycle for full recharge.
Technical Data
| Item | DXLD6 | DXLD8 | DXLD10 | DXLD12 | DXLD14 |
|---|---|---|---|---|---|
| Max Platform Height | 6m | 8m | 10m | 12m | 14m |
| Max Working Height | 8m | 10m | 12m | 14m | 16m |
| Capacity | 320kg | 320kg | 320kg | 320kg | 320kg |
| Platform Size | 2400*1170mm | 2400*1170mm | 2400*1170mm | 2400*1170mm | 2400*1170mm |
| Extend Platform Size | 900mm | 900mm | 900mm | 900mm | 900mm |
| Extend Platform Capacity | 115kg | 115kg | 115kg | 115kg | 115kg |
| Overall Size (Without guard rail) | 3000*1750*1700mm | 3000*1750*1820mm | 3000*1750*1940mm | 3000*1750*2050mm | 3000*1750*2250mm |
| Weight | 2400kg | 2800kg | 3000kg | 3200kg | 3700kg |
| Drive Speed | 0.8km/min | 0.8km/min | 0.8km/min | 0.8km/min | 0.8km/min |
| Lifting Speed | 0.25m/s | 0.25m/s | 0.25m/s | 0.25m/s | 0.25m/s |
| Material of Track | Rubber | Rubber | Rubber | Rubber | Rubber |
| Battery | 6v*8*200ah | 6v*8*200ah | 6v*8*200ah | 6v*8*200ah | 6v*8*200ah |
| Charge Time | 6-7h | 6-7h | 6-7h | 6-7h | 6-7h |
Application Scenarios
- Construction site aerial installation & maintenance
- Outdoor building facade painting, cleaning and inspection
- Farm, greenhouse, landscaping tree trimming
- Mining area, temporary power project maintenance
- Event stage setup, stadium maintenance
- Remote site work where wheeled scissor lift cannot access
Product Advantages
- Rubber crawler track, excellent rough terrain passability
- Electric battery power, zero emission, low noise
- Extendable working platform for extra operating area
- Heavy load capacity up to 320kg platform load
- Full safety protection system: overload, tilt protection
- Multiple working height options for different project requirements
- Factory direct sale, customizable color and logo
