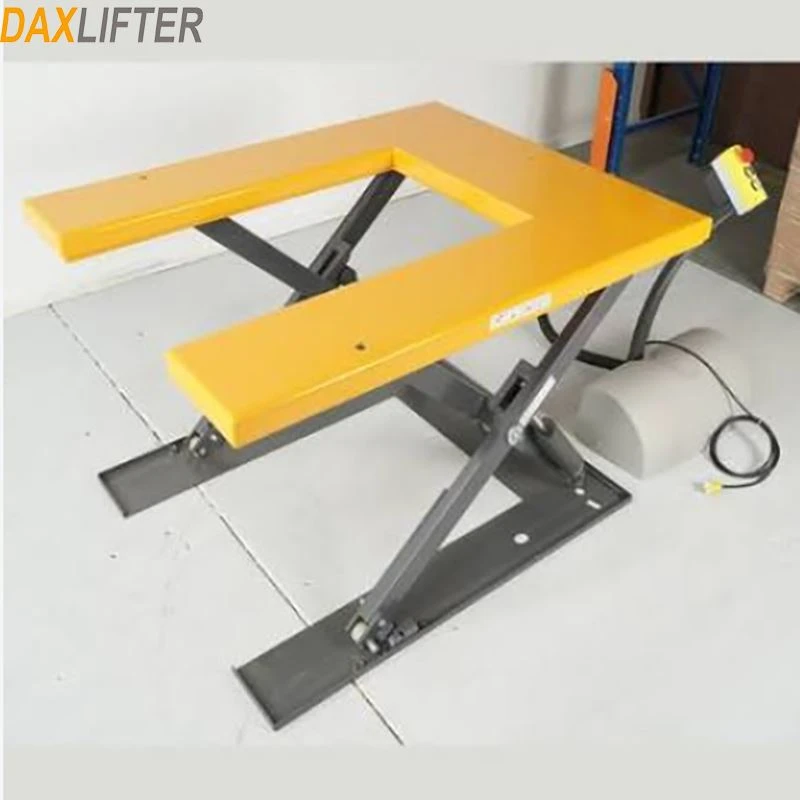

Low-profile U-shaped Stationary Hydraulic Scissor Lift Table

DAXLIFTER U Shaped Hydraulic Scissor Lift Table UL600 UL1000 UL1500

DAXLIFTER U-shaped stationary hydraulic scissor lift table covers 3 models: UL600 with 600kg capacity, platform size 1450*985mm, base dimension 1335x947mm, weight 207kg; UL1000 with 1000kg capacity, platform size 1450*1140mm, base dimension 1335x947mm, weight 280kg; UL1500 with 1500kg capacity, platform size 1600*1180mm, base dimension 1335x947mm, weight 380kg. All models reach max platform height of 860mm, minimum platform height is 85mm for UL600 & UL1000 and 105mm for UL1500, with Size A:200mm/280mm/300mm, Size B:1080mm/1080mm/1194mm, Size C:585mm/580mm/580mm respectively. This low-profile U type scissor lifting platform adopts open U frame design, allowing pallet trucks to directly drive into the platform without extra ramps or ground pits, widely used in manufacturing plants, logistics warehouses, packaging lines and workshop pallet loading & unloading operations. Built with heavy-duty scissor arms and durable hydraulic cylinders, this stationary lift table delivers stable lifting movement and high safety performance. The bright safety warning mark on scissor structure helps operators avoid pinch risks. Our U hydraulic lift platform is a reliable industrial material handling solution for global factory buyers, available for bulk order and technical customization.

Main Features

• U-shaped open platform design, suitable for pallet truck direct entry, save loading ramp cost
• Low minimum lowered height: 85mm~105mm, easy to load pallets
• Heavy hydraulic power system, smooth lifting & lowering, stable load bearing
• Robust scissor arm structure with safety warning stickers for operation safety
• 3 optional load capacities: 600kg,1000kg,1500kg to match different handling demands
• Compact base footprint, easy to install on flat workshop floor without pit digging

Technical Data

Application

Warehouse pallet handling, production assembly line, packaging workshop, factory loading & unloading, logistics distribution center, industrial material lifting.
