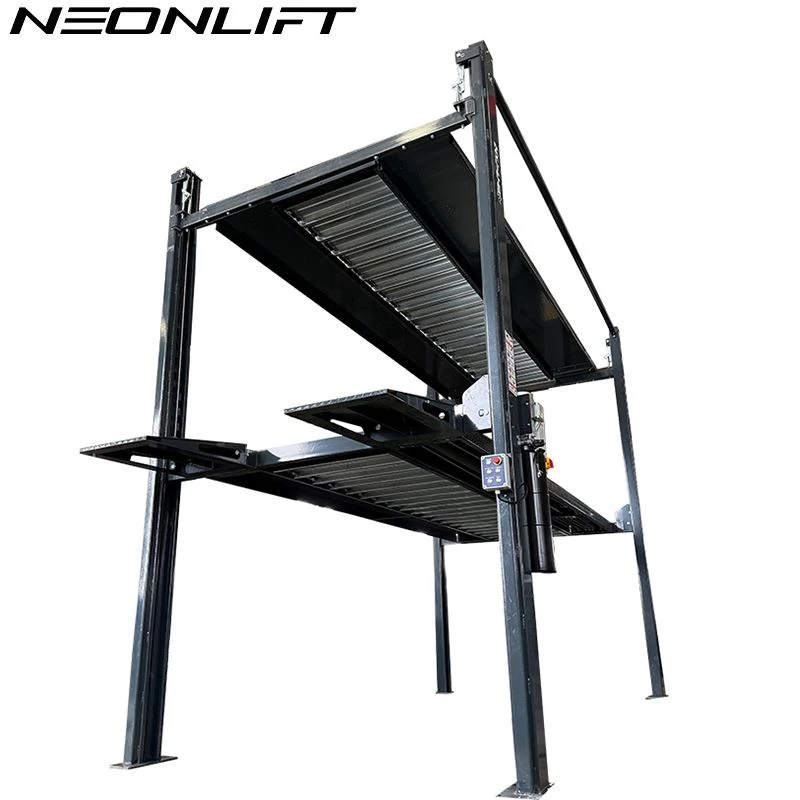

Four Post Triple Stack Parking System

Three-level four-post vehicle parking stacker covers three specifications:

TLFLPL2518, TLFLPL2519 and TLFLPL2020. Each unit can accommodate three vehicles simultaneously. The second parking platform supports a maximum load of 2500kg, and the third deck is rated for 2300kg. Three alternative single-layer heights (1800mm, 1900mm, 2000mm) can match garages with different ceiling limitations.

This parking equipment adopts a combined driving structure of hydraulic cylinders and steel wire ropes, powered by a standard 3kW motor. It supports wide-range power input from 100V to 480V. All metal components are treated with powder coating to enhance anti-rust performance. Push-button automatic control is adopted for all models, ensuring stable operation and easy daily parking management.

Triple stack four-post parking stacker is vertical vehicle storage equipment designed to save floor space. It works well for private villa garages, underground parking areas of apartments, auto service shops, car showrooms and community parking zones. Compared with single-layer and double-layer parking racks, the triple-deck design increases parking capacity two times on the same ground area, effectively easing parking shortages for residential and commercial projects. The four-post heavy steel framework improves overall rigidity and reduces side sway during lifting and lowering, offering reliable protection for sedans, SUVs and compact passenger vehicles.

The hydraulic cylinder and steel rope transmission delivers smoother movement and better load durability than parking lifts relying purely on chain transmission. The 3kW hydraulic power unit provides consistent lifting force, while the wide voltage compatibility fits power supply standards in Europe, Southeast Asia, the Middle East and North America, eliminating the need for additional transformers for overseas installation. Powder coating forms a dense anti-corrosion layer on the steel structure, resisting moisture, dust and slight humidity inside underground parking lots and extending the service life of columns and vehicle platforms.

Every model is equipped with a push-button control panel for automated operation. Operators can complete lifting, descent and locking operations simply by pressing buttons without complicated manual adjustments. Three height options serve different application scenarios: the 1800mm version suits private garages with low ceilings; the 1900mm model is the standard choice for commercial projects; the 2000mm specification provides extra clearance for larger SUVs. Clear load limits are marked on each platform to avoid overload damage to the whole parking system.

Technical Specifications

Product Advantages

• Three-layer layout accommodates three cars in one parking position, greatly improving space utilization in limited-area garages.
• Wide voltage range of 100-480V, compatible with power grids in most regions and convenient for global project supply.
• Hydraulic and steel rope combined drive runs quietly with stable speed, strong bearing capacity and low maintenance demands.
• Optional deck heights of 1800/1900/2000mm, adaptable to low-ceiling, standard and high-clearance parking environments.
• Powder-coated steel surface prevents rust and corrosion, suitable for damp, poorly ventilated underground parking spaces.
• Intuitive push-button automatic control, matched with mechanical safety locks to stop unexpected platform falling.
• Four-post heavy-duty steel construction with high rigidity, anti-sway design to protect vehicles during vertical movement.

Application Scenarios

Private villa garages, underground parking lots of residential buildings, shared parking zones in apartment communities, auto repair workshops, used car showrooms, hotel supporting parking facilities, auxiliary parking systems for office buildings and renovation projects of community parking areas.
