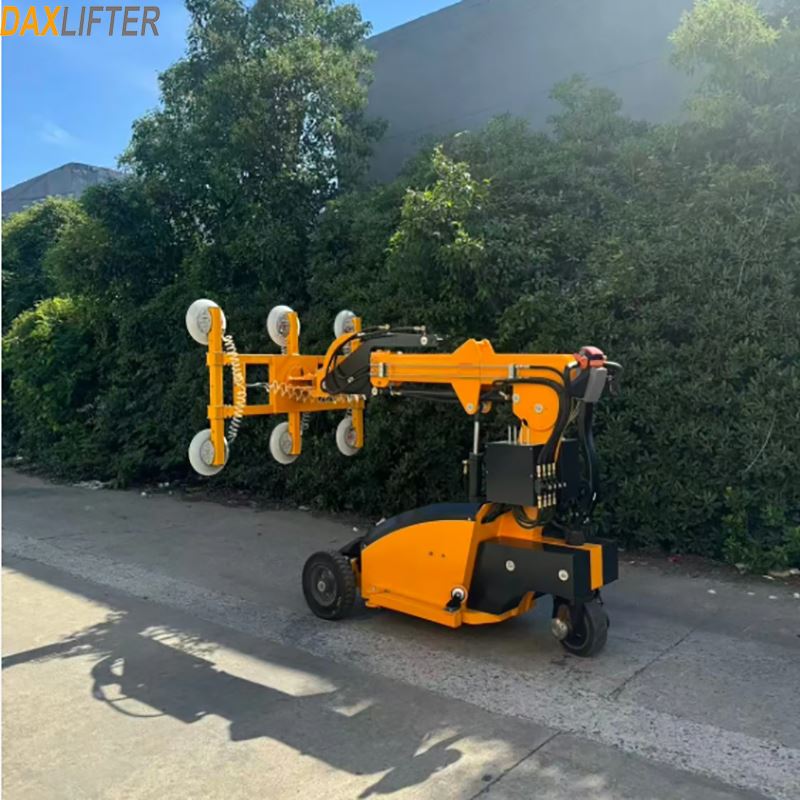

Battery Powered Self-propelled Glass Vacuum Lifter
DAXLIFTER DXGL-LD Series Self-propelled Glass Vacuum Lifter
DAXLIFTER DXGL-LD series self-propelled glass vacuum lifter delivers load capacity options from 300kg,400kg,500kg,600kg up to 800kg. All models support 360° manual rotation. The max lifting height reaches 3500mm for DXGL-LD300/400/500/600 and 5000mm for DXGL-LD800. It adopts walking style operation, powered by 2*12V batteries: 100Ah for 300-600kg models and 120Ah for the 800kg version. The charger is 24V with different current specifications, matched with 24V drive motor and lift motor for stable glass handling. Machine width remains 840mm for all variants, while length varies from 2560mm to 2800mm. Front and rear wheels and suction cups are configured differently according to load grades, with suction cup size 300mm and quantity ranging from 4 pcs to 8 pcs.
Application Scenarios
This mobile glass vacuum lifting robot is engineered for on-site glass facade installation, window & curtain wall assembly, large glass panel moving and handling. The vacuum suction cup system creates reliable adsorption on flat glass surface without scratching workpieces. Self-walking chassis enables flexible movement inside construction sites, warehouses and glass processing workshops. Manual 360-degree rotation function allows operators to adjust glass angle precisely during mounting.
Product Advantages
- Safe vacuum suction system for flat glass
- 360° manual rotation for accurate positioning
- Self-propelled walking design for easy site transfer
- 24V battery power, all electric hydraulic operation
- Multiple models available: 300kg to 800kg capacity
- Durable rubber wheels for rough construction ground
Technical Data
| Model | DXGL-LD 300 | DXGL-LD 400 | DXGL-LD 500 | DXGL-LD 600 | DXGL-LD 800 |
| Capacity(kg) | 300 | 400 | 500 | 600 | 800 |
| Manual rotation | 360° | ||||
| Max lifting height(mm) | 3500 | 3500 | 3500 | 3500 | 5000 |
| Operation method | walking style | ||||
| Battery(V/A) | 2*12/100 | 2*12/120 | |||
| Charger(V/A) | 24/12 | 24/15 | 24/15 | 24/15 | 24/18 |
| walk motor(V/W) | 24/1200 | 24/1200 | 24/1500 | 24/1500 | 24/1500 |
| Lift motor(V/W) | 24/2000 | 24/2000 | 24/2200 | 24/2200 | 24/2200 |
| Width(mm) | 840 | 840 | 840 | 840 | 840 |
| Length(mm) | 2560 | 2560 | 2660 | 2660 | 2800 |
| Front wheel size/quantity(mm) | 400*80/1 | 400*80/1 | 400*90/1 | 400*90/1 | 400*90/2 |
| Rear wheel size/quantity(mm) | 250*80 | 250*80 | 300*100 | 300*100 | 300*100 |
| Suction cup size/quantity(mm) | 300 / 4 | 300 / 4 | 300 / 6 | 300 / 6 | 300 / 8 |
All DXGL-LD glass vacuum lifters feature robust hydraulic lifting structure, ergonomic wireless control handle, solid rubber tires and safety protection mechanism. Our glass suction lifting machine complies with industrial safety standards, widely used in construction glazing, glass factory logistics, showroom glass installation and renovation projects. Custom suction frame can be provided to fit irregular glass panels.
