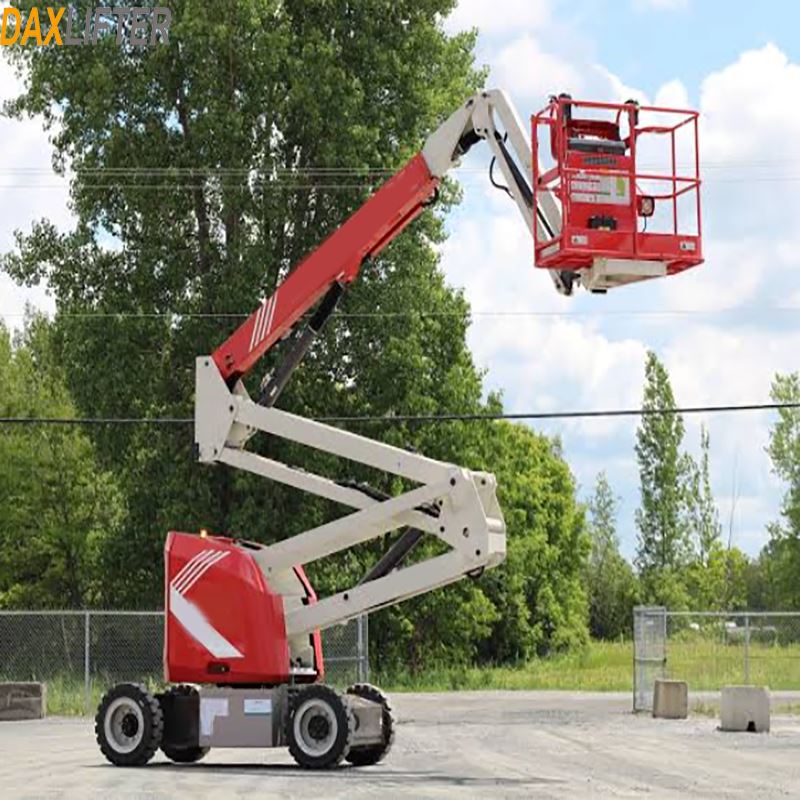

Electric Self-propelled Articulated Boom Lift
DAXLIFTER Electric Self-propelled Articulated Boom Lift Aerial Work Platform DX09-DX20
DAXLIFTER electric self-propelled articulated boom lift, available in DX09, DX11, DX14, DX16, DX18, DX20 models. The series features maximum working height ranging from 11.3m to 22.5m, max platform height from 9.3m to 20.5m, max up and over clearance 4.2m to 9.4m, and max working radius 5.8m to 11.8m. Platform dimension options include 1.4*0.7m,1.4*0.76m and 1.8*0.76m. The stowed length ranges from 5.2m to 8.99m, width 1.27m to 2.49m, stowed height 2.0m to 2.38m, wheelbase 1.75m to 2.5m, center ground clearance 0.14m to 0.3m.
This articulating boom aerial work platform delivers lifting capacity from 200kg up to 350kg, supporting 2 to 3 platform occupants. It provides ±80° platform rotation, ±70° jib rotation, 355° or continuous 360° turntable rotation. Drive speed in stowed condition reaches 4.5-5.1km/h with gradeability from 30% to 45°. The machine can work safely on slopes up to 3°. Outside turning radius varies from 3.2m to 5.0m, equipped with 2×2 or 4×2 drive & steer system. Unit weight ranges from 5200kg to 10000kg.
Power system adopts 48V battery pack (320Ah / 420Ah options), 4kw or 12kw pump motor, 3.3kw drive motor with 24V control voltage. Optional configurations include LFP lithium battery and solid non-marking tires.
Our self-propelled electric boom lift is widely used for building maintenance, factory installation, stadium construction, warehouse inspection, street lamp repair and other indoor & outdoor aerial working scenarios. The articulated boom design enables flexible operation around obstacles, ideal for complex site conditions. All DAXLIFTER aerial platforms comply with international safety standards, stable performance, low noise and zero emission for green operation.
Main Advantages
- Flexible articulated boom structure, great overreach performance
- Full electric drive, environment friendly and low operating cost
- Multiple working height options from 11.3m to 22.5m
- Strong gradeability for rough ground outdoor works
- Stable lifting system with tilt sensor protection
- Custom optional LFP battery and non-marking solid tires
- Factory direct supply, reliable after-sales support
Technical Parameters
| Specifications | DX09 | DX11 | DX14 | DX16 | DX18 | DX20 |
|---|---|---|---|---|---|---|
| Max. Working height | 11.3m | 12.52m | 15.8m | 17.7m | 20.2m | 22.5m |
| Max. Platform height | 9.3m | 10.52m | 13.8m | 15.7m | 18.2m | 20.5m |
| Max. up and over clearance | 4.2m | 4.65m | 7.0m | 7.3m | 8.0m | 9.4m |
| Max. Working radius | 5.8m | 6.5m | 7.5m | 8.9m | 11.1m | 11.8m |
| Platform dimensions (L*W) | 1.4*0.7m | 1.4*0.7m | 1.4*0.76m | 1.4*0.76m | 1.8*0.76m | 1.8*0.76m |
| Length-stowed | 5.2m | 5.6m | 6.5m | 7.2m | 8.49m | 8.99m |
| Width | 1.27m | 1.50m | 1.76m | 1.9m | 2.49m | 2.49m |
| Height-stowed | 2.0m | 2.0m | 2.0m | 2.0m | 2.38m | 2.38m |
| Wheelbase | 1.75m | 1.95m | 2.0m | 2.0m | 2.5m | 2.5m |
| Ground clearance-center | 0.14m | 0.14m | 0.25m | 0.25m | 0.25m | 0.3m |
| Max. Lift capacity | 200kg | 200kg | 230kg | 230kg | 230kg/350kg | 230kg/350kg |
| Number of Platform Occupants | 2 | 2 | 2 | 2 | 2/3 | 2/3 |
| Platform rotation | ±80° | ±80° | ±80° | ±80° | ±80° | ±80° |
| Jib rotation | ±70° | ±70° | ±70° | ±70° | ±70° | ±70° |
| Turntable rotation | 355° | 355° | 355° | 355° | 360° continuous | 360° continuous |
| Drive speed-stowed | 4.8km/h | 4.8km/h | 5.1km/h | 5.0km/h | 4.8km/h | 4.5km/h |
| Gradeability-stowed | 35% | 35% | 30% | 30% | 45% | 40% |
| Max. Working angle (Tilt sensor activation) | 3° | 3° | 3° | 3° | 3° | 3° |
| Turning radius-outside | 3.3m | 4.08m | 3.2m | 3.45m | 5.0m | 5.0m |
| Drive and steer | 2×2 | 2×2 | 2×2 | 2×2 | 4×2 | 4×2 |
| Weight | 5710kg | 5200kg | 5960kg | 6630kg | 9100kg | 10000kg |
| Battery | 48V/320Ah | 48V/320Ah | 48V/320Ah | 48V/320Ah | 48V/420Ah | 48V/420Ah |
| Pump motor | 4kw | 4kw | 4kw | 4kw | 12kw | 12kw |
| Drive motor | 3.3kw | 3.3kw | 3.3kw | 3.3kw | 3.3kw | 3.3kw |
| Control voltage | 24V | 24V | 24V | 24V | 24V | 24V |
| Optional | LFP battery, Solid non-marking tires | |||||
Contact DAXLIFTER team for quotation and customized solution for your aerial lifting project.
