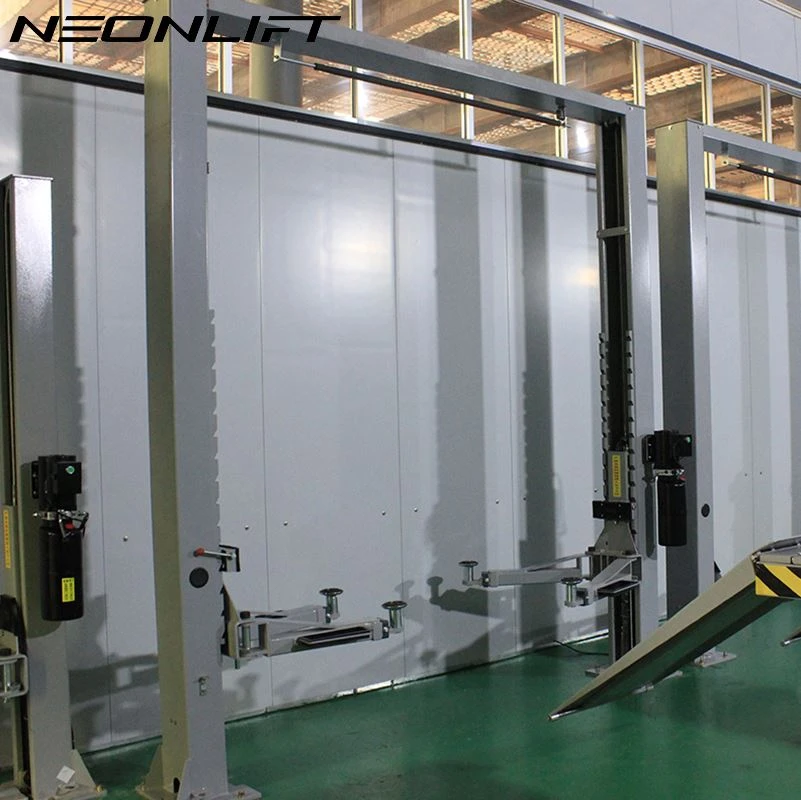

Pneumatic Release Auto Repair Hoist
Clear Floor Two Post Car Lift CFR Series 3500kg-5000kg Auto Service Hoist with Mechanical and Pneumatic Release Options
Clear floor two post lift covers five complete models to meet diverse service demands. CFR3500 offers a 3500kg lifting load, 1750mm lifting travel, 120mm minimum pick-up height, 3630mm column height, 2800mm inner column width, 3380mm required installation span and a 2.2Kw power unit with bilateral mechanical release.
Pneumatic release auto repair hoist variant supports up to 4000kg while maintaining identical dimensions and mechanical unlocking structure. CFR4500 carries 4500kg with consistent lifting range, column size and 2.2Kw motor. Automotive workshop two post lift adopts pneumatic release and extends lifting height to 1800mm, keeping 4500kg capacity, 120mm ground clearance and 3830mm columns. The heavy-duty CFR5000-P reaches a maximum 5000kg load, 1900mm lifting stroke, 4420mm uprights, widened 3220mm inter-column space, 3920mm installation width and a stronger 3.0Kw motor fitted with automatic pneumatic release. Adjustable two post car lifting equipment fits light passenger vehicles, SUVs and small commercial vans for auto repair garages, tyre service workshops, wheel alignment centers and authorized service outlets worldwide.
Product Overview
This overhead clear-floor two post lifting equipment removes the overhead crossbeam barrier, leaving open overhead space for roof panel removal, windscreen replacement and upper-body servicing. Technicians gain full access to vehicle undercarriages for engine maintenance, brake servicing, tyre fitting and four-wheel alignment. The CFR series utilises thick integral steel uprights, non-slip adjustable swing arms and a balanced hydraulic lifting system. Dual safety latches act as a safeguard to prevent unintended platform descent during vehicle servicing. Workshop operators across Europe, North America, Southeast Asia, the Middle East, Africa and Latin regions can choose mechanical manual release or air-powered pneumatic release based on on-site air compressor availability to boost daily service efficiency.
Every unit in this lifting range complies with international safety standards, with standardized dimensions compatible with typical workshop layouts globally. Models rated 3500kg to 4500kg are equipped with energy-efficient 2.2Kw motors to lower operational power consumption. The top CFR5000-P uses a reinforced 3.0Kw power unit to deliver steady lifting performance for heavier full-size vehicles. The fixed 120mm minimum height enables safe lifting of low-profile sports cars and compact hatchbacks without scratching vehicle bottoms. Four adjustable swing arms support automobiles with different wheelbases, broadening service coverage for vehicle maintenance operators.
Garage equipment distributors, auto tool wholesalers and independent repair shop owners can source this two post lift with optional custom paint finishes and OEM branding. We supply complete installation guides, remote technical support and long-term supply of replacement hydraulic spare parts for international traders. Coordinated global shipping arrangements help fulfil steady market demand for robust lifting machinery with low failure rates.
Technical List
| Model | CFR3500 | CFR4000 | CFR4500 | CFR4500-P | CFR5000-P |
|---|---|---|---|---|---|
| Lifting Capacity | 3500kg | 4000kg | 4500kg | 4500kg | 5000kg |
| Lifting Height | 1750mm | 1750mm | 1750mm | 1800mm | 1900mm |
| Minimum Height | 120mm | 120mm | 120mm | 120mm | 120mm |
| Column Height | 3630mm | 3630mm | 3630mm | 3830mm | 4420mm |
| Width Between Columns | 2800mm | 2800mm | 2800mm | 2800mm | 3220mm |
| Required Installation Width | 3380mm | 3380mm | 3380mm | 3380mm | 3920mm |
| Motor Power | 2.2Kw | 2.2Kw | 2.2Kw | 2.2Kw | 3.0Kw |
| Release Mode | Two Side Mechanical Release | Two Side Mechanical Release | Two Side Mechanical Release | Pneumatic Release | Pneumatic Release |
Product Advantages
- Clear floor structure without overhead crossbeam, unobstructed space for roof and windscreen service work
- Twin safety mechanical latches that engage automatically while lifting
- Two optional release systems: manual mechanical type and air-driven pneumatic type for different workshop setups
- Load coverage ranging from 3.5 ton to 5 ton, suitable for compact cars, SUV, MPV and light commercial vehicles
- Low 120mm minimum height, compatible with vehicles with reduced ground clearance
- Heavy-duty thick steel uprights with electrostatic powder coating to resist corrosion and extend service life
- Energy-saving hydraulic power unit, delivering consistent lifting motion free of shake or slippage
- Standard four-section adjustable swing arms, adaptable to passenger cars with varied wheelbases
Main Application Scenarios
General auto repair workshops, authorized vehicle service stations, tyre fitting shops, wheel alignment centers, vehicle detailing garages, car modification workshops, garage equipment retailers and international auto tool wholesale businesses
