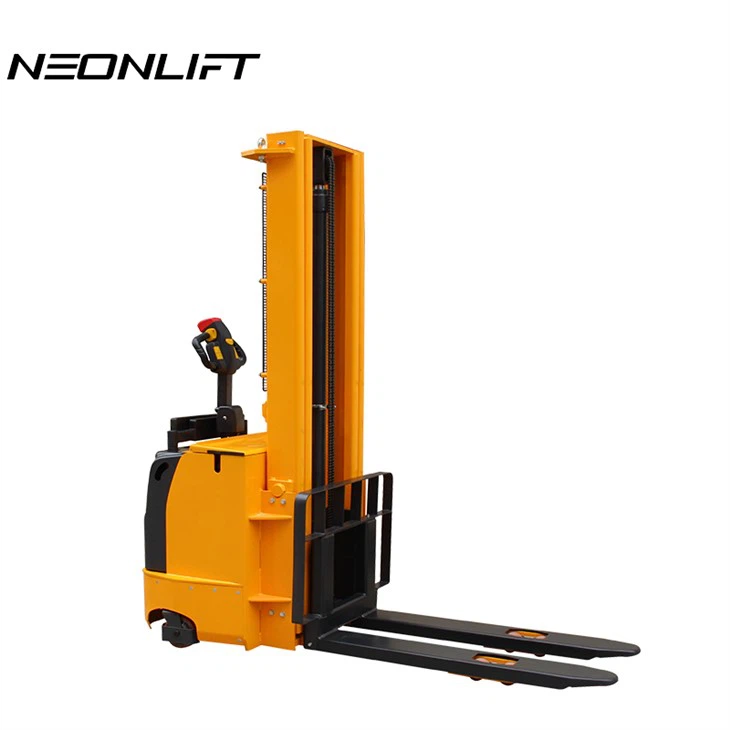

Description Full Electric Self Drive Forklift is a self-propelled lift used in warehousing. The maximum lifting height of this forklift is 3500mm, which is very suitable for indoor use and meets almost all indoor needs. The standard model has a load capacity of 1500kg, which meets the needs of...
Send Inquiry

Description

Full Electric Self Drive Forklift is a self-propelled lift used in warehousing. The maximum lifting height of this forklift is 3500mm, which is very suitable for indoor use and meets almost all indoor needs. The standard model has a load capacity of 1500kg, which meets the needs of general situations, but if you need a larger load capacity, please let us know and we can customize it according to your reasonable needs. The electric forklift uses accessories from world-renowned brands, such as controllers from DURTIS in the United States and charging plug-ins from REMA in Germany, which greatly ensures the service life of the product and gives customers a better shopping experience.





Technical Data



Model

DXCDD-S15

Capacity (Q)

1500KG

Drive Unit

Electric

Operation Type

Pedestrian

Load Center (C)

600mm

Overall Length (L)

1925mm

Overall Width (b)

840mm

840mm

840mm

940mm

940mm

940mm

Overall Height (H2)

2090mm

1825mm

2025mm

2125mm

2225mm

2325mm

Lift Height (H)

1600mm

2500mm

2900mm

3100mm

3300mm

3500mm

Max Working Height (H1)

2244mm

3144mm

3544mm

3744mm

3944mm

4144mm

Lowered Fork Height (h)

90mm

Fork Dimension (L1×b2×m)

1150×160×56mm

MAX Fork Width (b1)

540/680mm

Turning radius (Wa)

1525mm

Drive Motor Power

1.6 KW

Lift Motor Power

2.0 KW

Battery

240Ah/24V

Weight

859kg

915kg

937kg

950kg

959kg

972kg



product-865-423



Why Choose us

We are a professional electric forklift manufacturer with many years of experience. The spare parts we use are all from well-known manufacturers, and the product quality is greatly guaranteed. Over the years, the stackers we have produced and sold have been distributed all over the world, including: Nigeria, the Republic of South Africa, Estonia, Ecuador, New Zealand, Bangladesh, Ghana and other regions. The all-electric stacker is small, equipped with wheels and can be moved in and out of the lift, making it effortless to use. All buttons are concentrated on the handle, making operation easy and fast. It improves efficiency and ensures safety, so why not choose us?



Application

Jose, one of our customers from Thailand, built a new warehouse to store canned beef. He has a diesel-powered forklift, but cannot use it indoors due to the limited width between racks. According to Jose's required lifting height and the width between shelves, we customized a fully electric forklift specifically for him. After Jose received the goods, he couldn't wait to put it into use. The electric stacker worked perfectly with his racks and was the perfect size. He was very grateful to us for helping him solve his problem, and he was also happy to recommend our products to local friends in need. We are very honored. If you also need it, please send us an inquiry as soon as possible.
